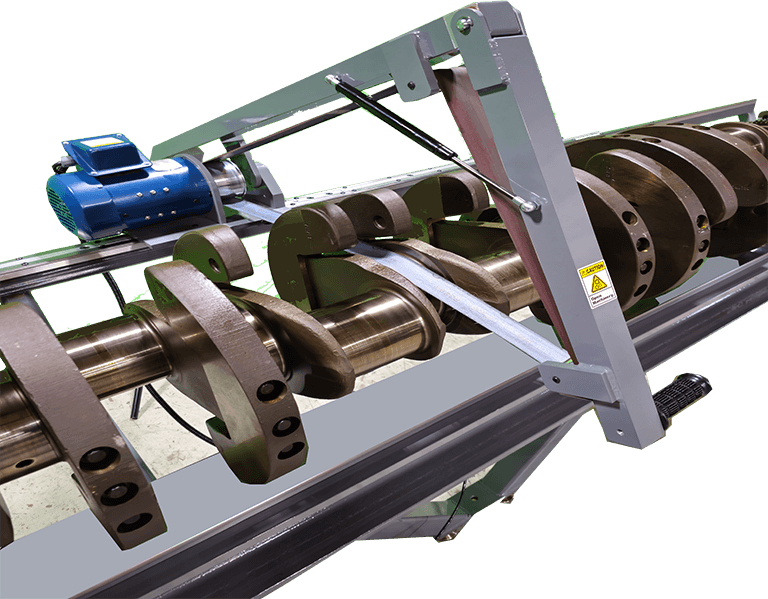

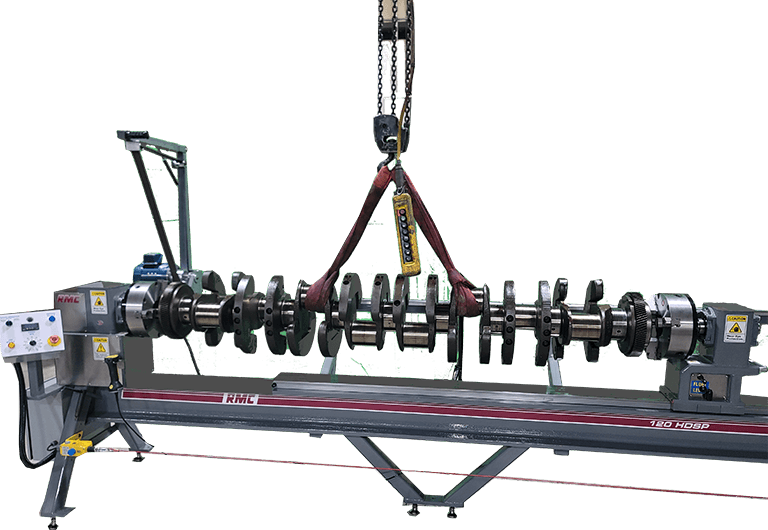

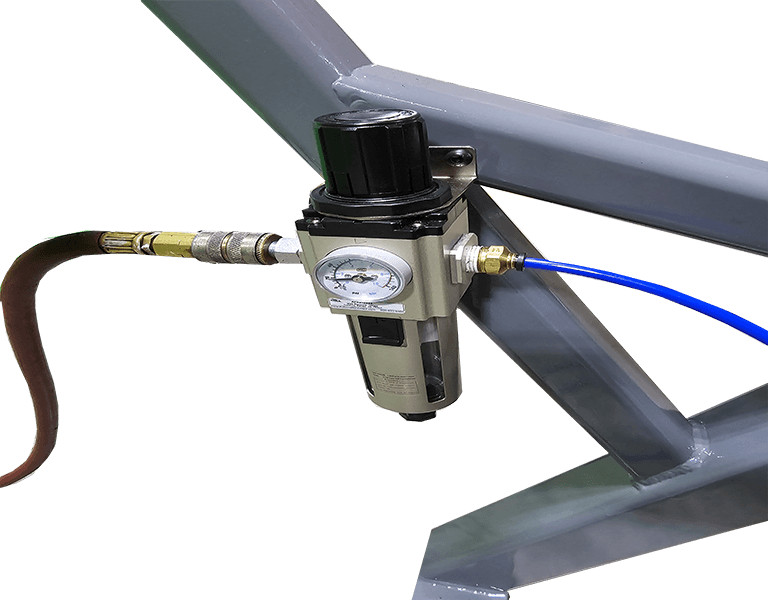

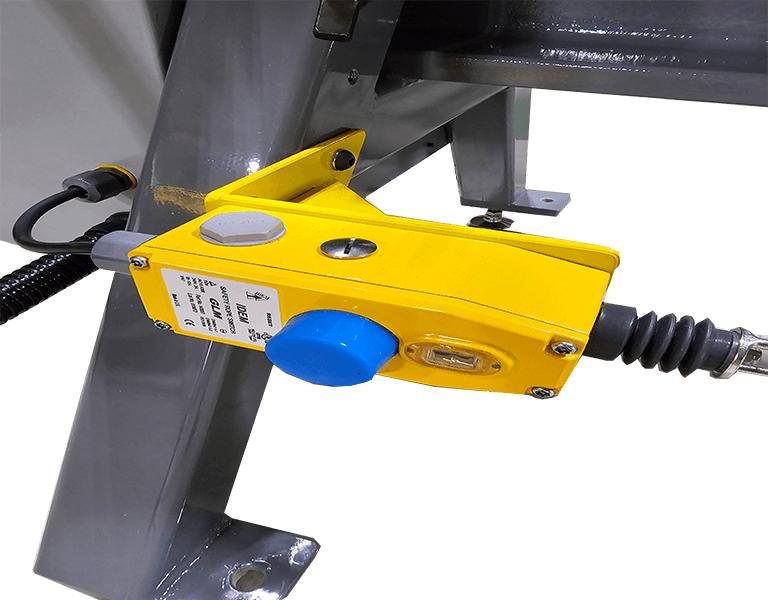

Engineered with durability and efficiency in mind, the RMC-140HDSP is designed to handle the toughest jobs with ease. Its innovative inverter-driven rotation ensures smooth, soft-start operation, while the air float tailstock makes loading and length adjustments fast and effortless. With advanced safety features, precision controls, and rugged construction, the RMC-140HDSP sets a new standard for performance in crankshaft handling and polishing.
|

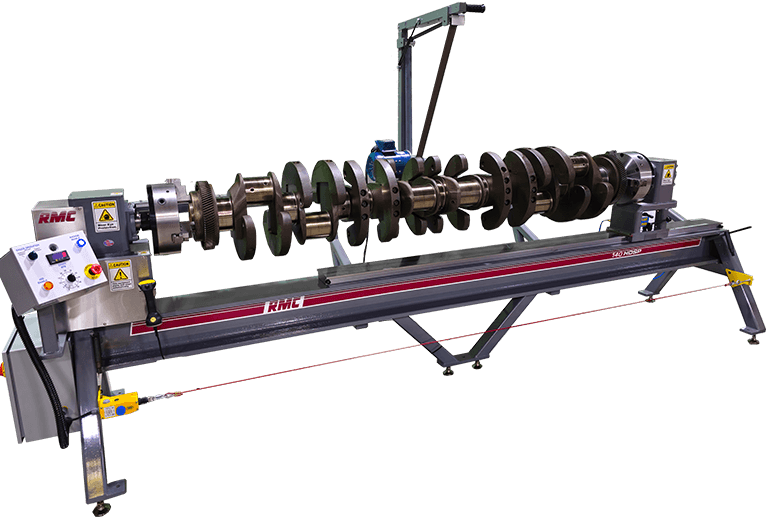

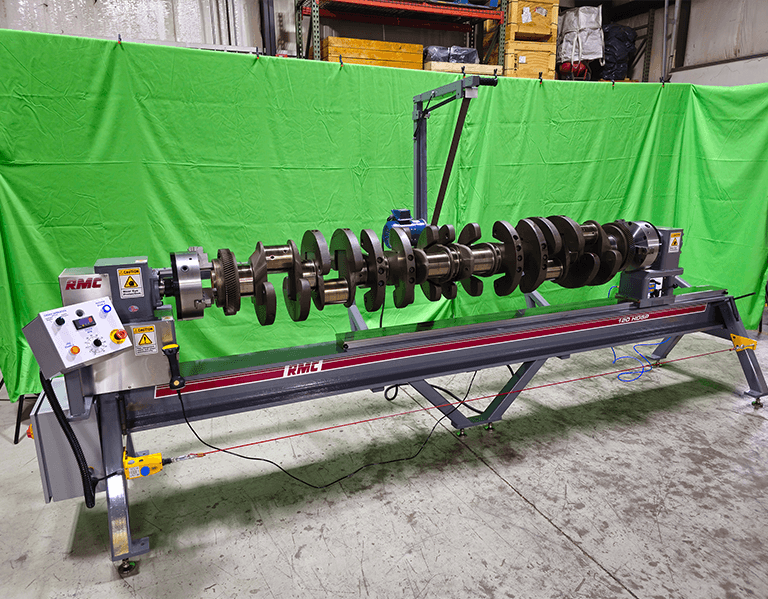

RMC-140HDSP
|
|
|---|---|
| Weight Capacity | 2,000 lbs |

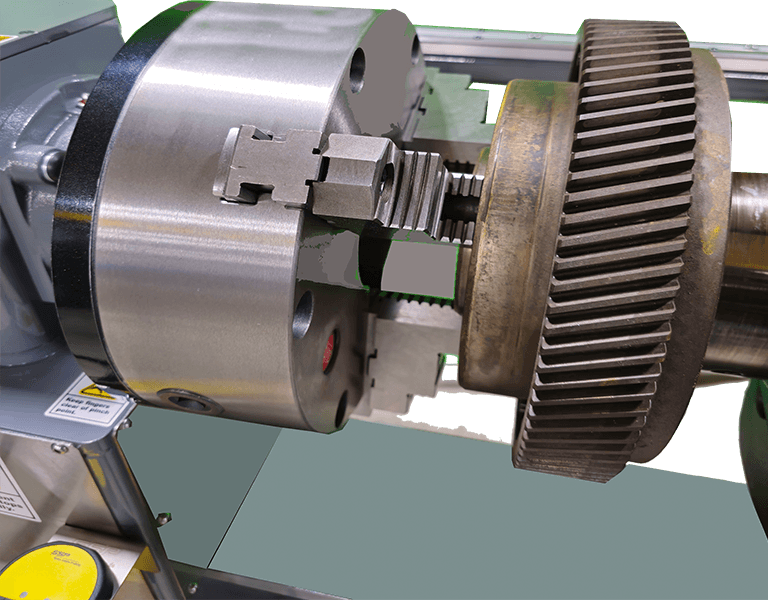

| Maximum Chuck Capacity | 10" |
| Minimum Crank Length | 42" |
| Maximum Crank Length | 140" |
| Maximum Crank Swing | 20.75" |
| Belt Length / Width | 91" L × 2" |
| ELECTRICAL SERVICE | |
| 220 Volt | 3 Phase • 60 Hz • 15 Amps (Standard) |
| 380 Volt | 3 Phase • 50 Hz • 15 Amps (Optional) |
| 440 Volt | 3 Phase • 60 Hz • 10 Amps (Optional) |
| DIMENSIONS | |
| Overall Length | 186.0" |
| Overall Width | 52" |
| Overall Height | 80" (Arm Up Position) |
| Shipping Dimensions | 192" L × 48" W × 80" H |
| Gross Weight | 2,100 lbs / 952.54 kg |
| Shipping Weight | 2,600 lbs |
Capacity & Dimensions
Electrical Service
Machine Dimensions
Shipping
With its combination of power, precision, and operator-friendly design, the RMC-140HDSP is built to maximize productivity while ensuring long-term reliability in demanding environments.
