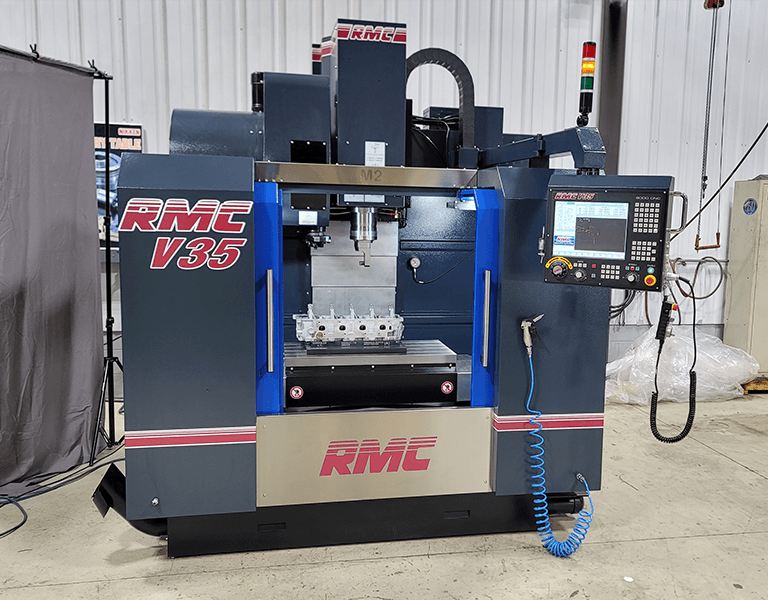

The RMC V35 CNC OHC 90° Align Boring System represents the next generation of precision engine component machining. Engineered by RMC Engine Rebuilding Equipment, the V35 combines over 50 years of machining innovation with advanced CNC technology to deliver exceptional accuracy, reliability, and efficiency. Its fully enclosed, compact floor layout provides a clean and ergonomic workspace, while inverter drives, servo-controlled motors, and linear ball ways ensure smooth, vibration-free operation. The 20-pocket automatic tool changer and integrated probing system are designed to minimize setup time and maximize productivity, making the V35 an essential solution for high-performance engine shops.

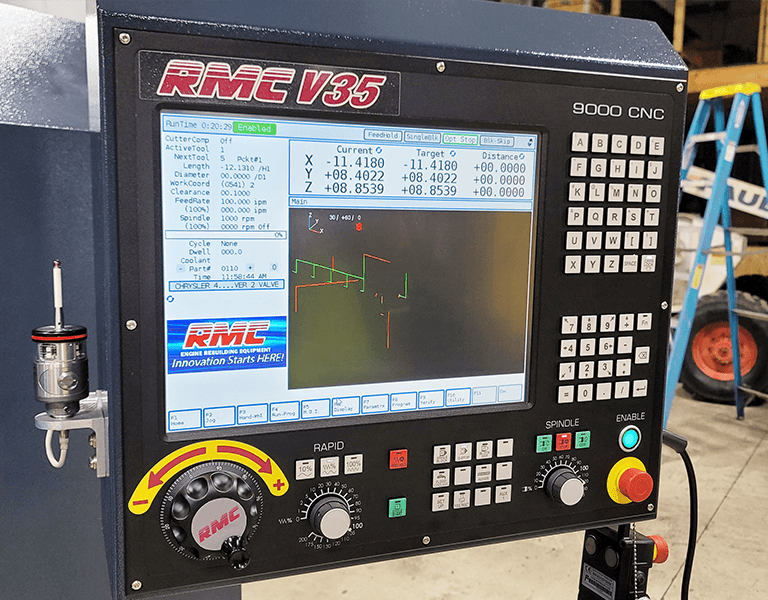

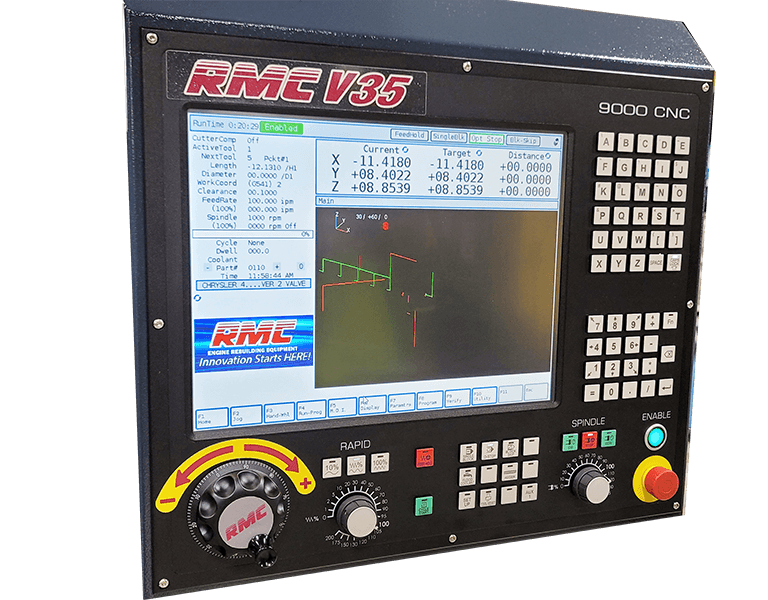

Built around RMC’s powerful industrial PC-based CNC controller, the V35 offers both conversational menu-driven programming and traditional G-code compatibility, allowing operators of any experience level to achieve consistent, repeatable results. The large LCD display and full-function keypad make operation intuitive and efficient, while positioning accuracy of ±0.0002″ and repeatability of ±0.00015″ ensure perfect alignment on every job. Capable of spindle speeds from 50 to 8000 RPM and a boring range from 0.900″ to 1.375″, the V35 provides the flexibility to handle a wide variety of precision engine machining applications.
|
V35 OHC
|
|
|---|---|
| Boring Range (Various Tooling) | 0.900" – 1.375" |
| Max Boring Depth (Various Tooling) | 1.70" |
| Table Traverse (X-Axis) | 30" |
| Cross Traverse (Y-Axis) | 16" |
| Vertical Head Travel (Z-Axis) | 20" |
| Spindle Nose to Table Height | 24" |
| Spindle Center to Column | 20" |
| Rapid Traverse (X-Y Axis) | 1,000 IPM |
| Rapid Traverse (Z-Axis) | 1,000 IPM |
| Feed Rate Range | 0.1 – 200 IPM / 0.1 – 800 IPM |
| ACCURACY | |
| Positioning | ± .0002" |
| Repeatability | ± .00015" |
| PERFORMANCE | |
| Table Size (L × W) | 45" × 20" |
| Max Weight on Table | 1,500 lbs |
| Main Spindle Motor (Intermittent / Constant) | 18 / 12 HP |
| Spindle Speed | 50 – 8,000 RPM |
| Spindle Taper | CAT 40 |
| Net Weight (Without Fixtures) | 9,000 lbs |
| Workspace Required (W × D × H) | 86" × 82" × 110" |
| Electrical Requirements | 220 Volt 3-Phase |

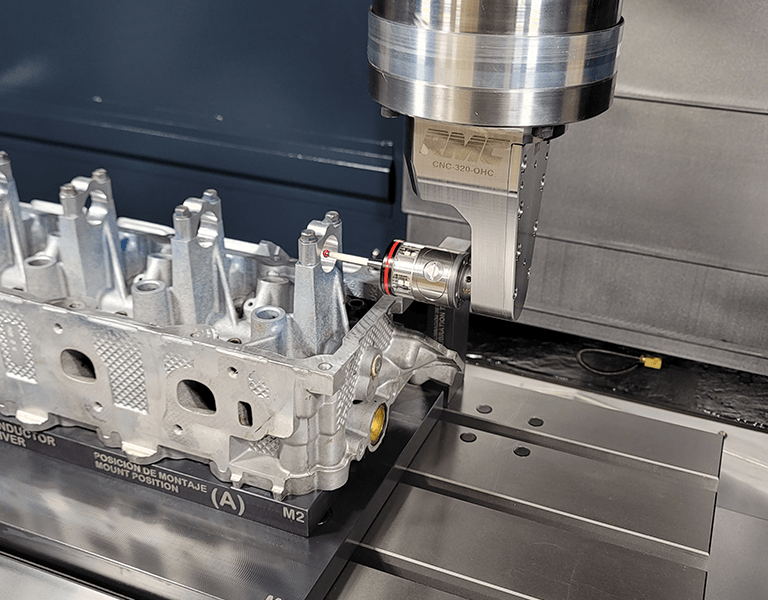

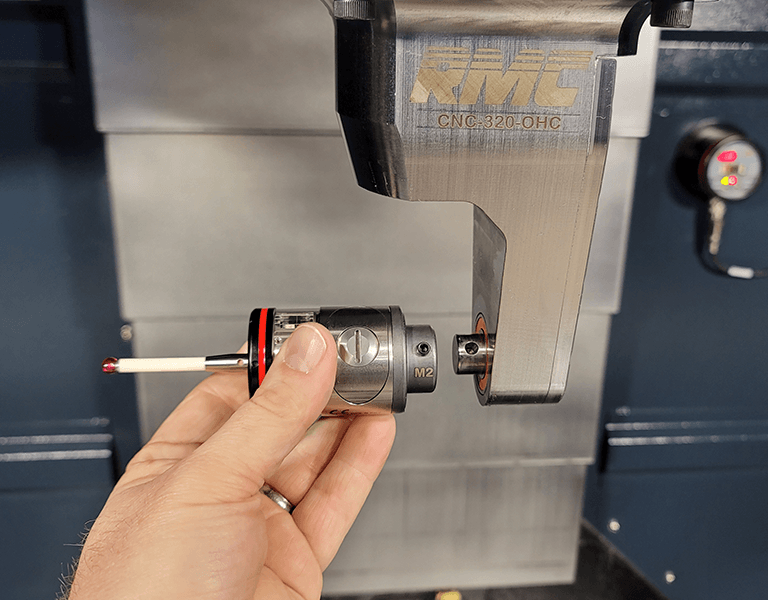

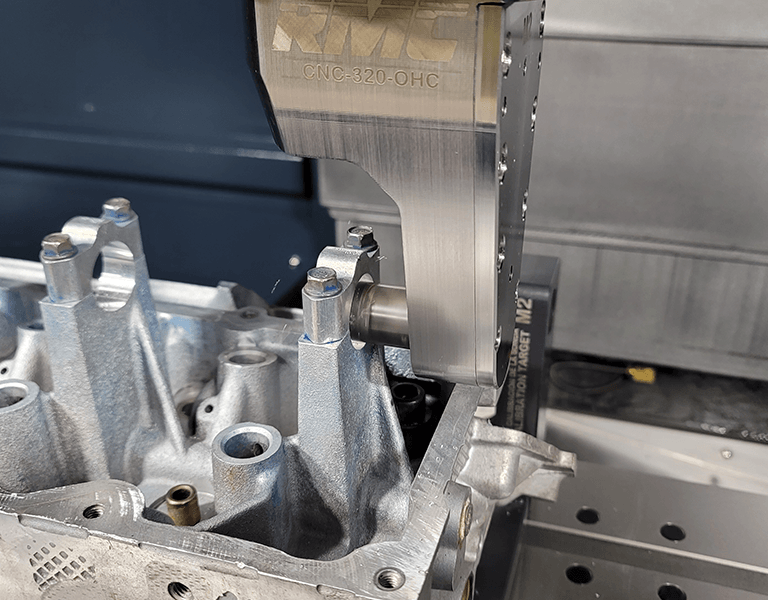

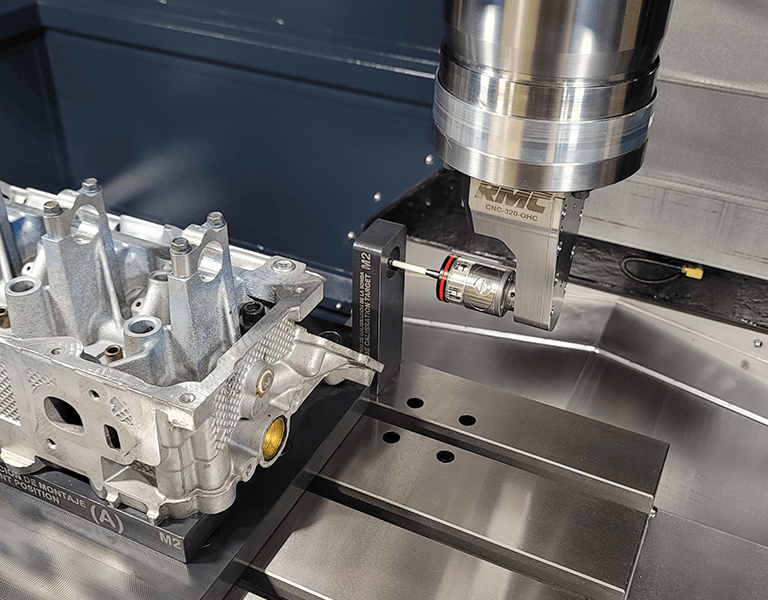

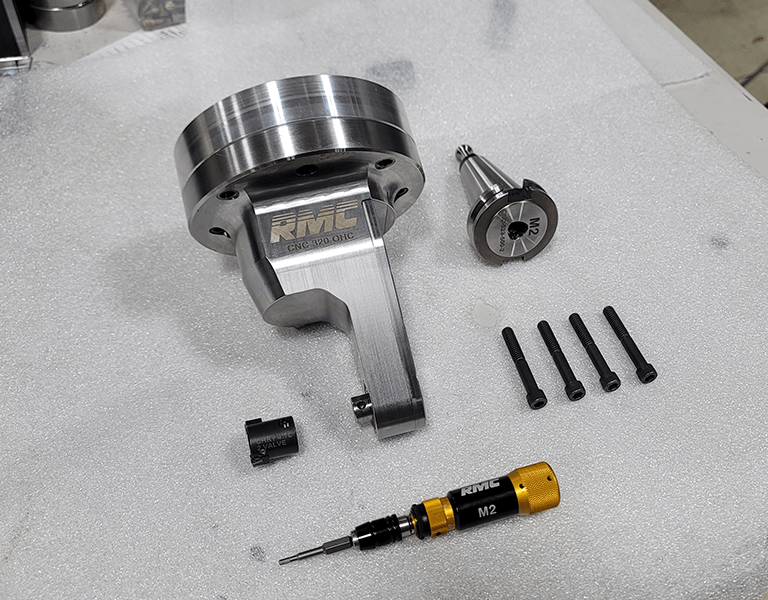

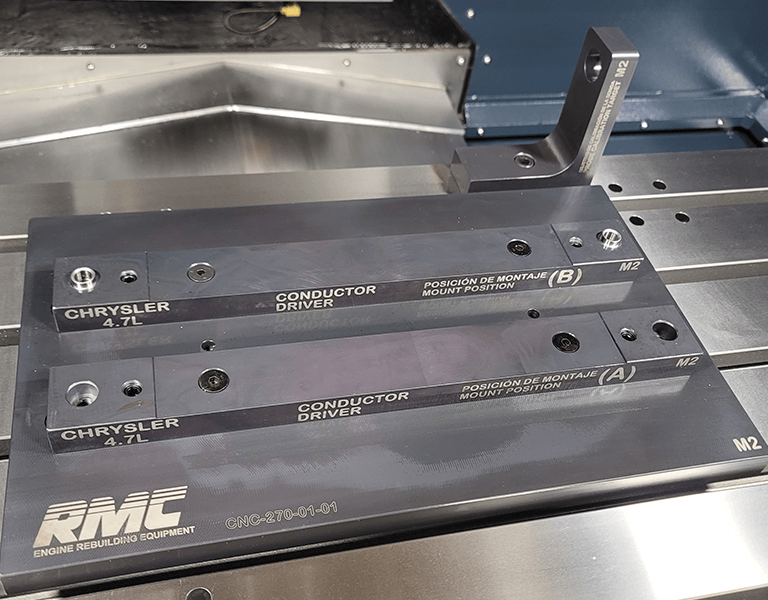

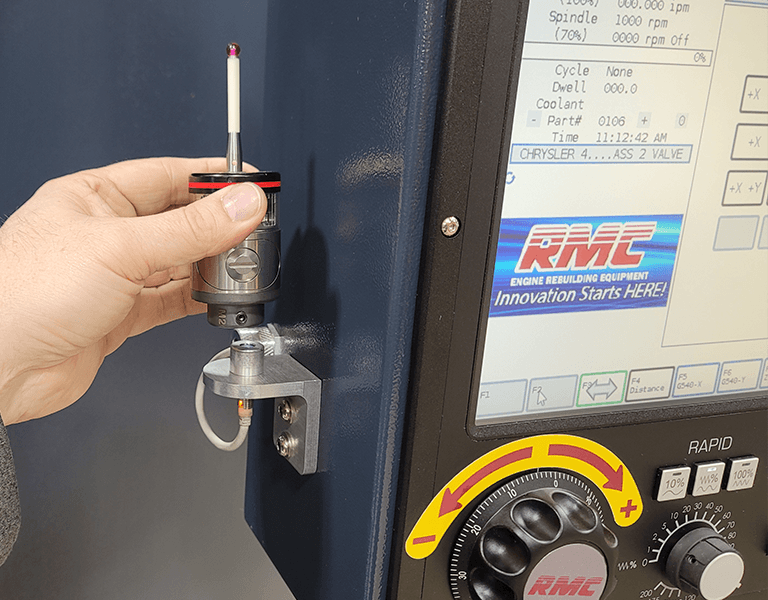

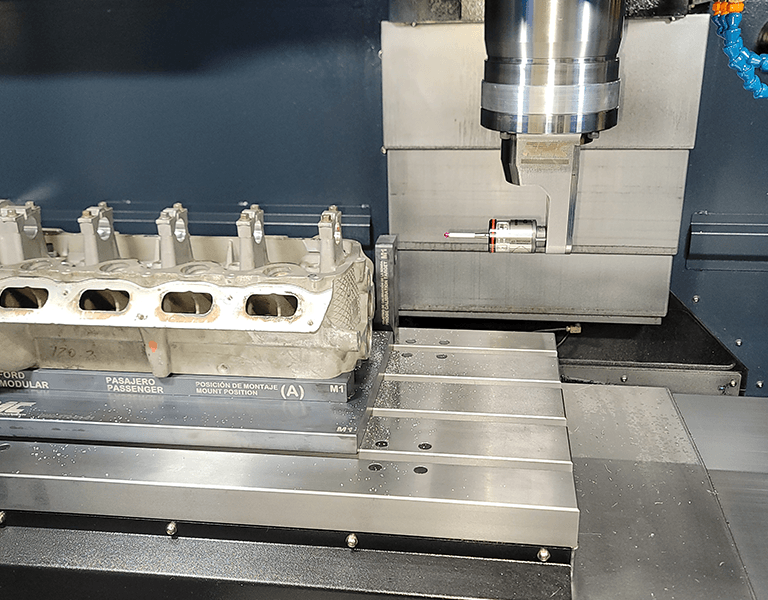

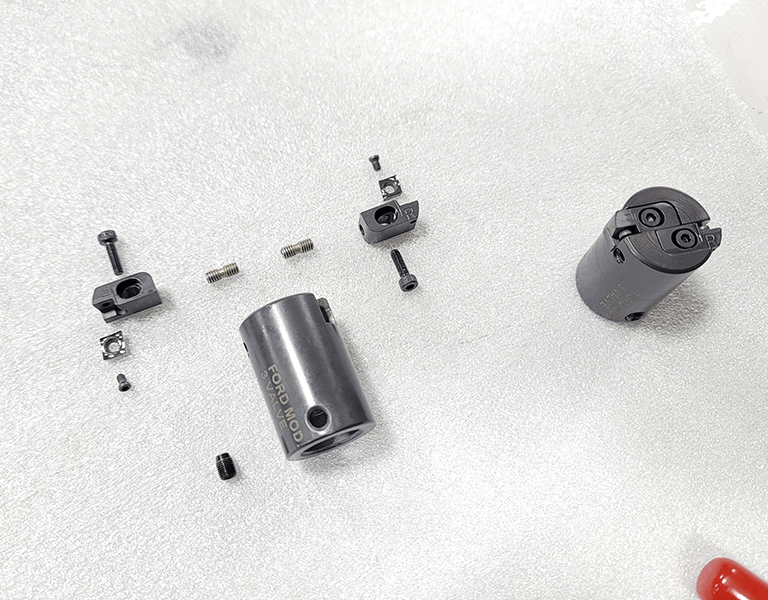

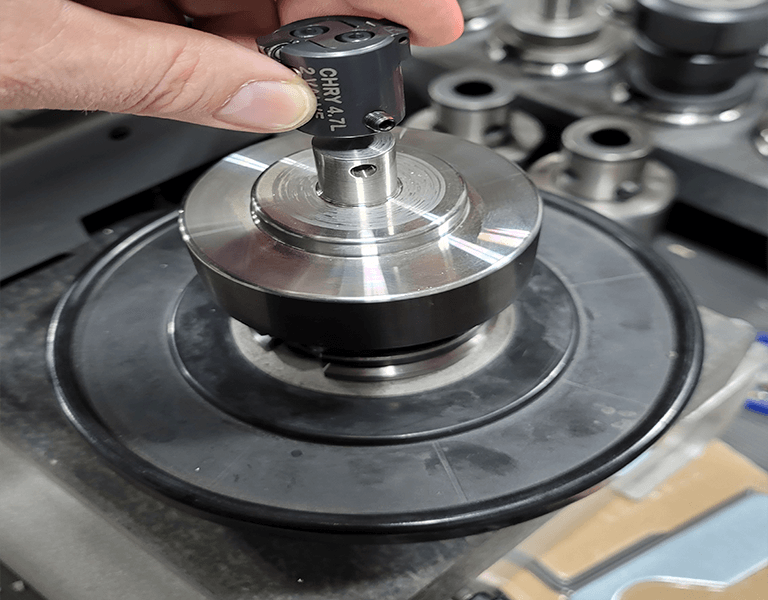

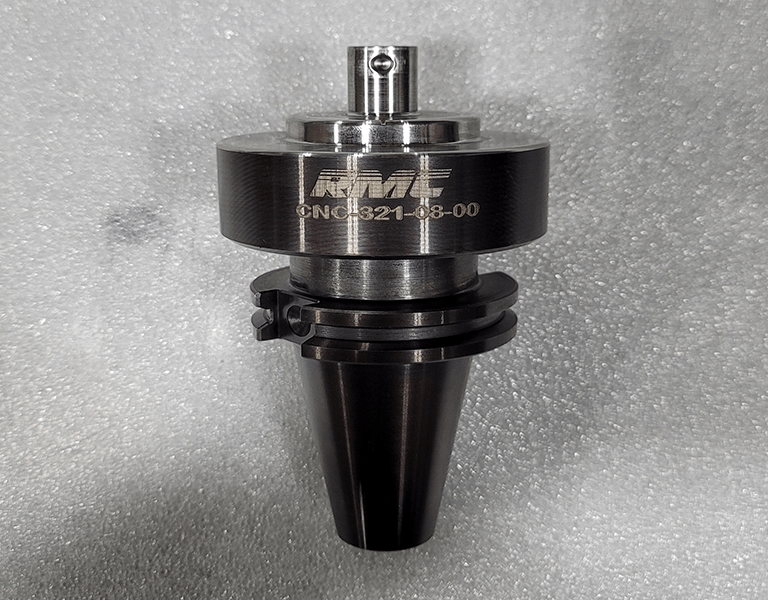

RMC’s innovative OP32 wireless probe system is one of the standout features of the V35, automatically locating existing cam bores, checking critical datum points, and verifying alignment before boring begins. The digital diameter tool setting system further streamlines setup by allowing quick, one-step bore diameter measurements with instant digital verification, eliminating guesswork and ensuring superior machining precision. RMC’s in-house engineering and manufacturing team also provides a comprehensive selection of optional tooling packages and fixture systems—such as head locating bar sets for Ford and Chevy OHC heads, right-angle boring heads, and automatic laser tool diameter and length checkers—so each V35 can be customized to meet specific production requirements.
Every V35 CNC system is backed by RMC’s factory-trained technical support team, ensuring smooth installation, expert training, and ongoing service to keep your machine operating at peak performance. Designed for precision, built for productivity, and supported for life, the RMC V35 CNC delivers the accuracy, control, and durability that today’s engine rebuilding industry demands. Innovation starts here—with RMC’s commitment to performance that lasts.
