The RMC-220HDSP is purpose-built to handle today’s demanding heavy-duty applications with unmatched precision and efficiency. Designed with operators in mind, this innovative machine combines rugged construction with advanced technology to deliver consistent, high-quality shaft polishing results every time.
With its robust design and advanced features, the RMC-220HDSP is the ultimate solution for shops requiring a reliable, high-performance shaft polishing system. It not only boosts efficiency but also ensures consistent quality across every job, making it a true workhorse for modern machine shops.
|

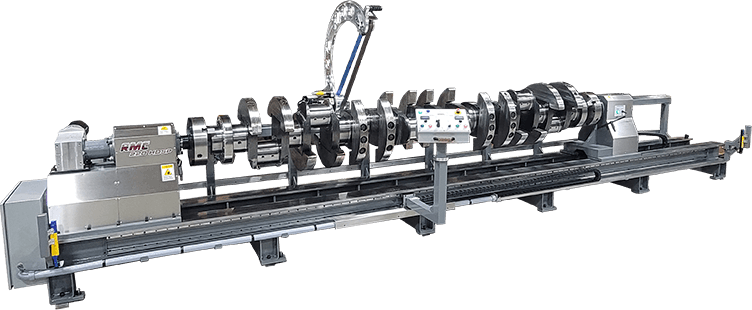

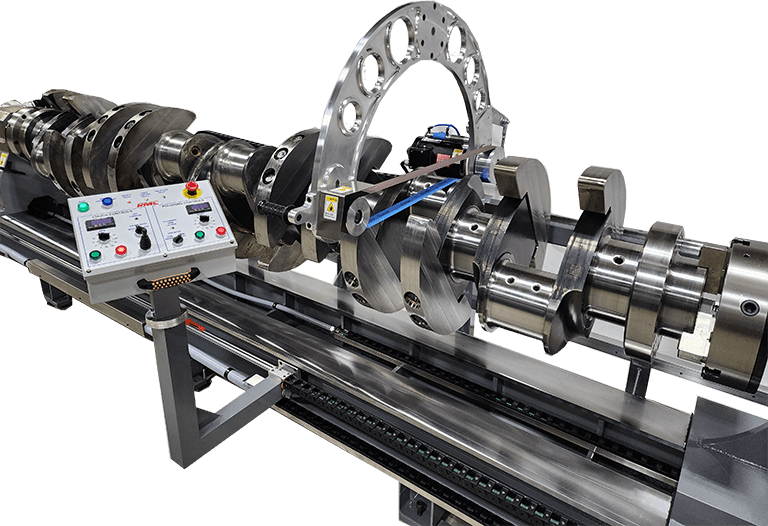

RMC-220HDSP
|
|
|---|---|
| Weight Capacity | 8,000 lbs |
| Maximum Chuck Capacity | 11" |
| Minimum Crank Length | 24" |
| Maximum Crank Length | 220" |
| Maximum Crank Swing | 30" |
| Belt Length / Width | 96" L × 2.5" W |

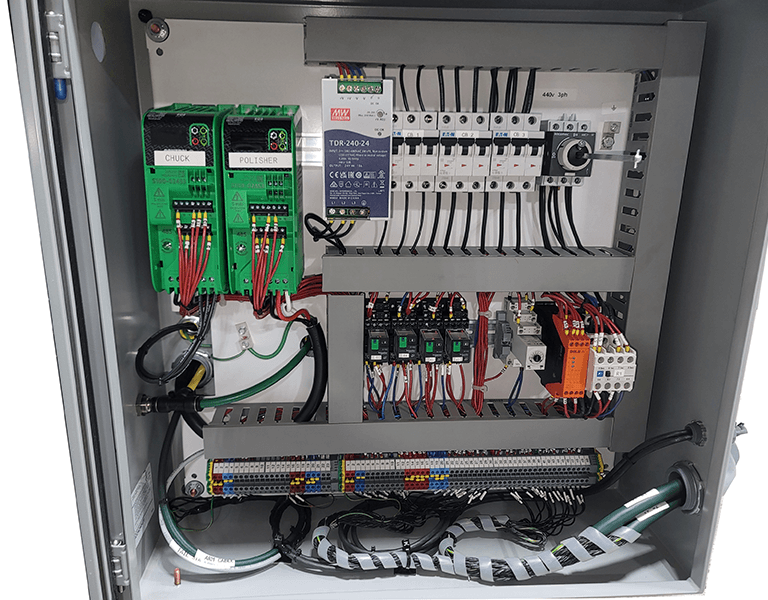

| ELECTRICAL SERVICE | |
| 220 Volt | 3 Phase • 60 Hz • 15 Amps (Standard) |
| 380 Volt | 3 Phase • 50 Hz • 15 Amps (Optional) |
| 440 Volt | 3 Phase • 60 Hz • 10 Amps (Optional) |
| DIMENSIONS | |
| Overall Length | 312.0" |
| Overall Width | 74" |
| Overall Height | 87" (Arm Up Position) |
| Shipping Dimensions | 320" L × 78" W × 68" H |
| Gross Weight | 7,800 lbs / 952.54 kg |
| Shipping Weight | 8,100 lbs |
