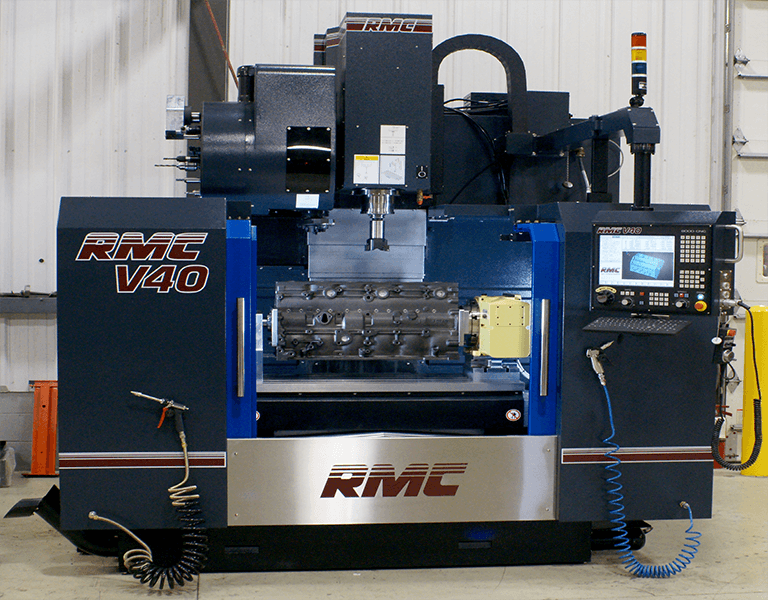

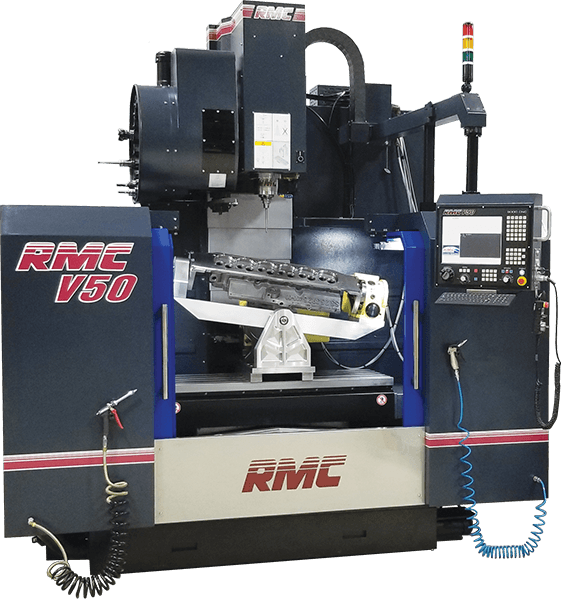

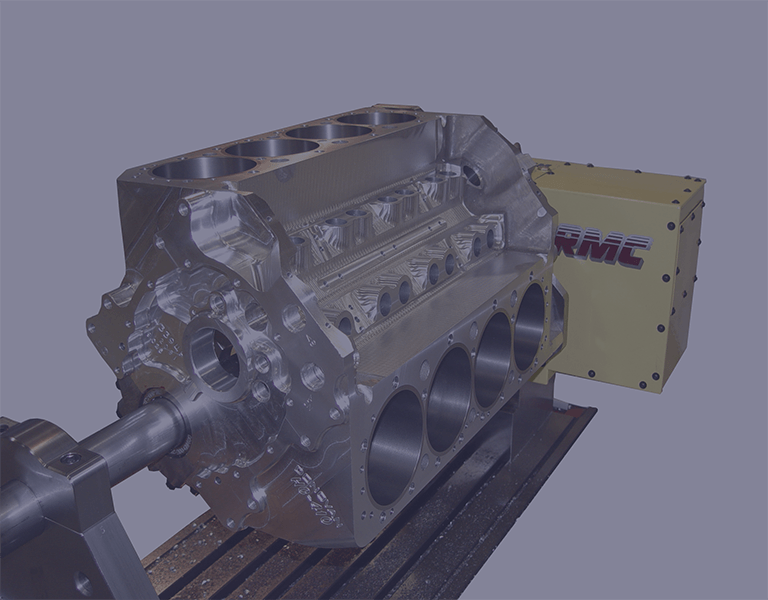

The RMC V40/50HP Series brings together cutting edge 5-axis CNC technology, robust mechanical design, and intelligent software integration to deliver the most complete head porting solution available. Developed through years of engineering refinement and customer feedback, the V Series combines machining precision, process repeatability, and production efficiency for today’s most demanding engine builders.
|
5-AXIS HEAD PORTING
|
||
|---|---|---|
| Specifications | V40HP | V50HP |
| Main Rotary Table — A Axis | 360° | 360° |
| Tilting Rotary Table — B Axis | ±32° | ±40° |
| Tool Changer | 24 Pocket | 24 Pocket |
| Optional Tool Changer | N/A | 32 / 40 Pocket |
| AXIS MOVEMENT | ||
| Table Traverse — X Axis | 40" | 50" |
| Cross Traverse — Y Axis | 20" | 25" |
| Vertical Head Travel — Z Axis | 20" | 20" |
| Spindle Nose to Table Height | 37" | 37" |
| Spindle Center to Column | 25" | 25" |
| Rapid Traverse — X, Y and Z Axes | 1,000 IPM | 1,000 IPM |
| Feed Rate Range | 0.01–800 IPM | 0.1–500 IPM |
| ACCURACY | ||
| Positioning | ±0.0002" | ±0.0002" |
| Repeatability | ±0.00015" | ±0.00015" |
| PERFORMANCE | ||
| Table Size — L × W | 45" × 20" | 56" × 24" |
| Maximum Weight on Table | 2,000 lbs | 3,500 lbs |
| Main Spindle Motor — Intermittent / Constant | 24 / 15 HP | 24 / 15 HP |
| Optional Main Spindle Motor | 35 / 25 HP | 35 / 25 HP |
| Spindle Speed | 50–10,000 RPM | 50–10,000 RPM |
| Optional High-Speed Spindle | 100–15,000 RPM | 100–15,000 RPM |
| Spindle Taper | CAT 40 | CAT 40 |
| DIMENSIONS AND WEIGHT | ||
| Net Weight | 11,000 lbs | 25,000 lbs |
| Workspace Required — W × D × H | 112" × 110" × 120" | 144" × 136" × 129" |

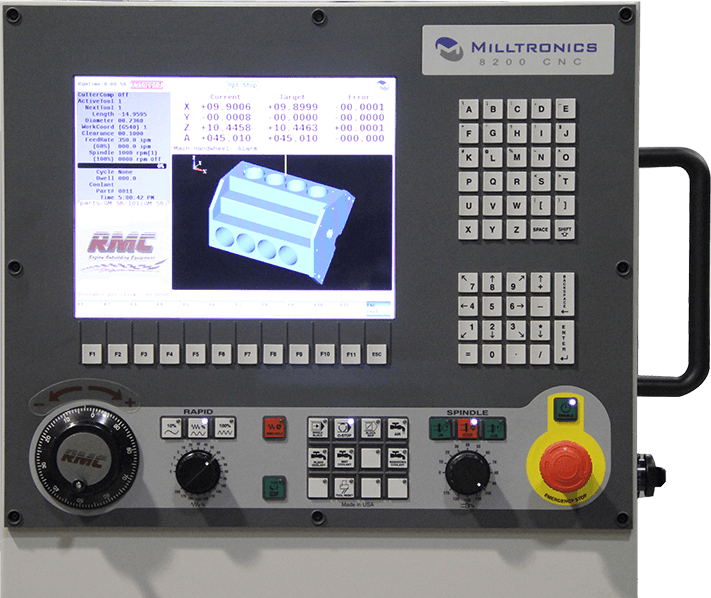

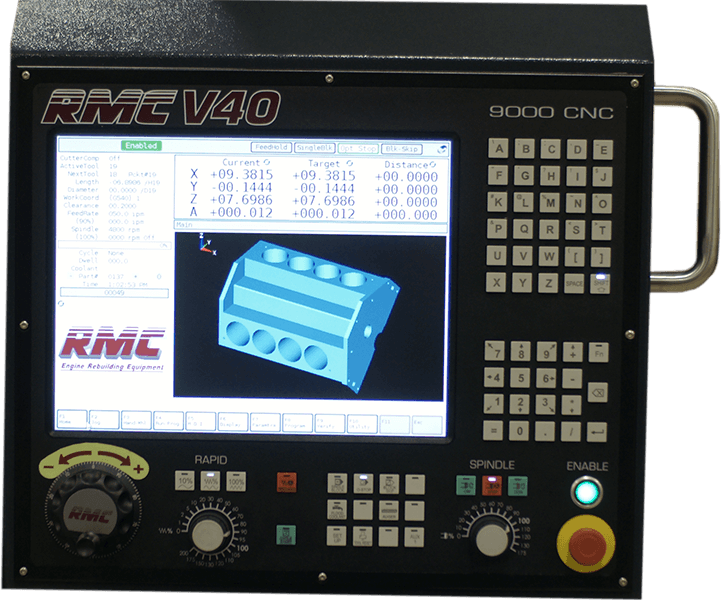

At the core of the V40/50HP is RMC’s true simultaneous 5-axis control—providing full freedom of movement for complex port geometries and combustion chamber shapes. The system utilizes industry-standard G-code and conversational programming, allowing fast setup, smooth toolpaths, and compatibility with popular CAD/CAM platforms.

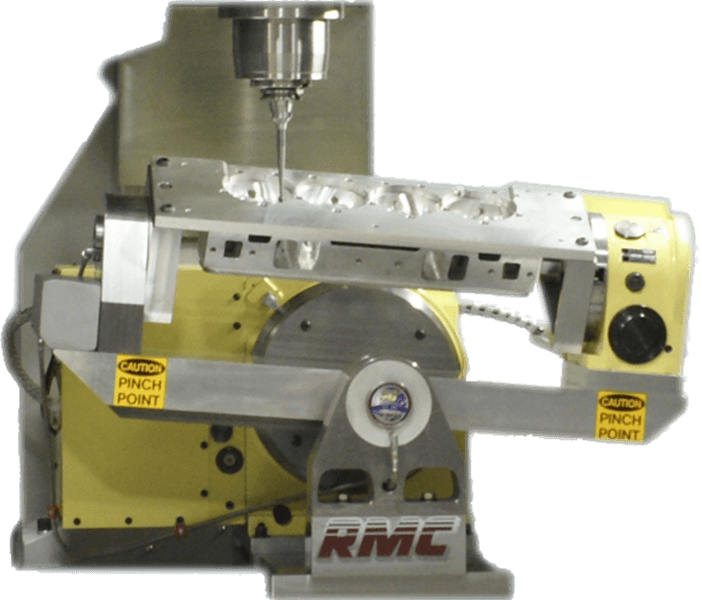

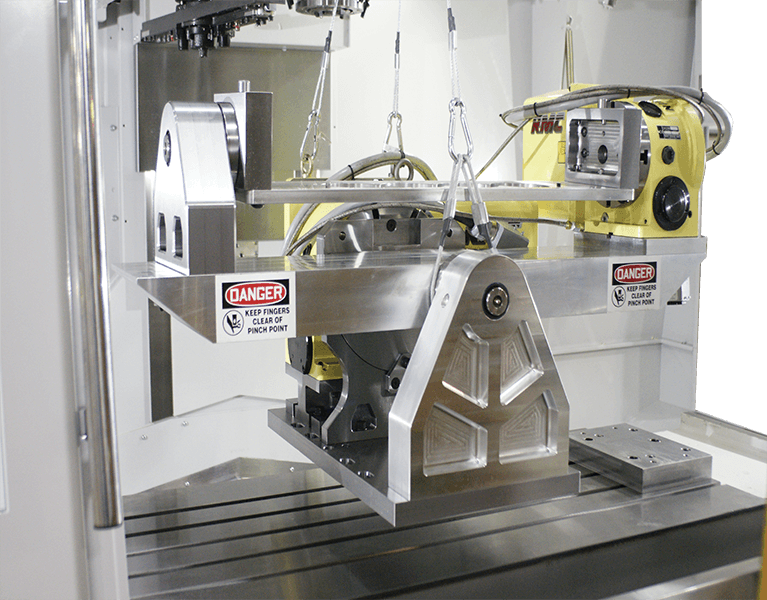

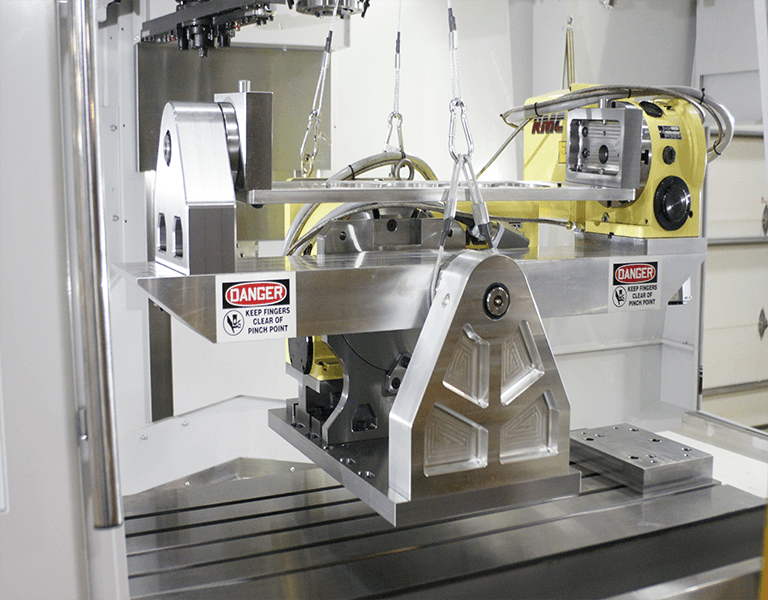

Precision Nikken rotary tables ensure rigid positioning and unmatched repeatability, while the heavy-duty 5.7-inch (145 mm) spindle cartridge features dual 70 mm bearings for maximum stability. The high-speed spindle operates from 50 to 8,000 rpm (optional 12,000 rpm) for optimum surface finishes across aluminum, cast iron, and compacted graphite materials. With 1000 ipm rapid traverse speed and a robust 24/15 HP (18/11 kW) spindle motor, the V40/50HP maintains cutting consistency through the most challenging porting cycles.

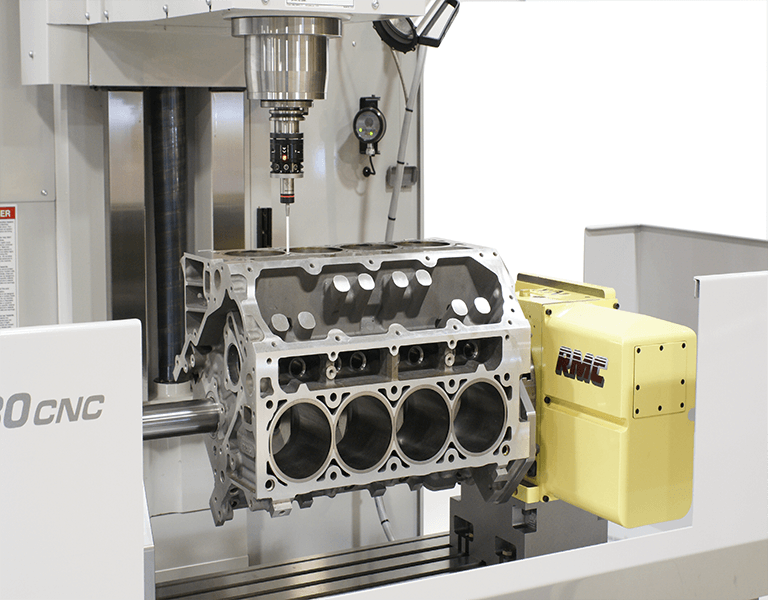

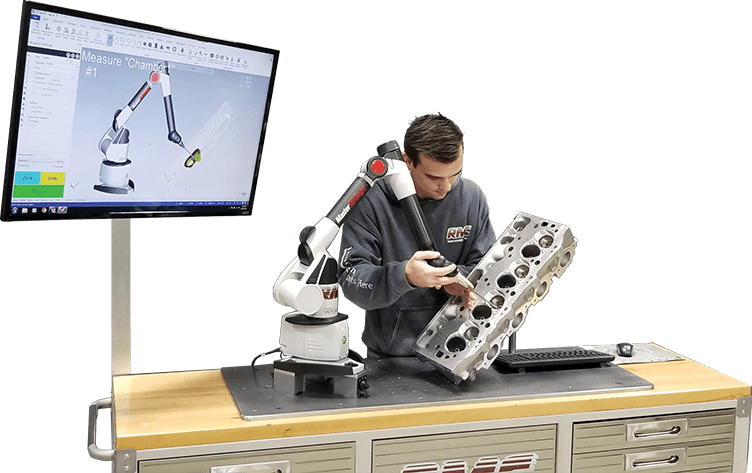

RMC’s proprietary digitizing and probing technology powered by Verisurf 3D Measurement Solutions enables precise data capture and exact reproduction of expertly ported heads. The integrated digital probe automates coordinate measurement, eliminating manual gauging while improving repeatability and throughput. Combined with RMC’s advanced software suite, engineers can digitize, modify, and machine complex port profiles with unparalleled accuracy.

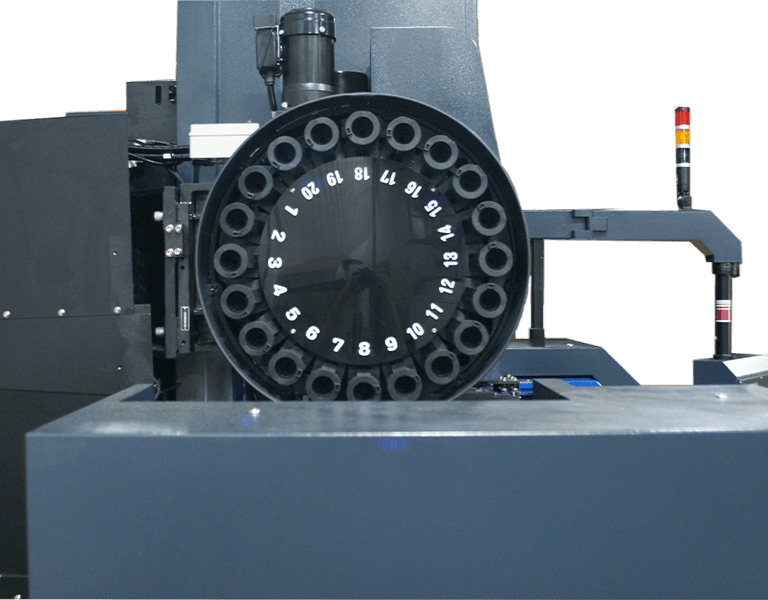

The standard 24-position automatic tool changer, with an optional 32-position upgrade, allows continuous operation with minimal operator intervention. Brushless AC servo motors provide smooth, responsive motion control across all axes, while modular 5-axis construction simplifies maintenance and reconfiguration for other machining applications.
Every RMC V40/50HP system is delivered as a fully integrated package machine, fixtures, programming, and softwar ready to produce finished heads directly from raw castings. Optional enclosures, chip augers, and dust extraction systems maintain a clean, efficient work environment.
The result is a production ready head porting system engineered for precision, repeatability, and performance—built to meet the exacting standards of professional engine builders, performance shops, and OEM development programs.
